How to Swap Out the Circuit Board in a Frigidaire Refrigerator with Bottom Freezer

When it comes to maintaining the efficiency and longevity of your Frigidaire refrigerator, especially models with a bottom freezer, one crucial component that might occasionally require attention is the circuit board. Also known as the electronic control board, this piece acts as the brain of your refrigerator, managing various functions such as temperature control and defrost cycles. If you’re experiencing issues like erratic temperature fluctuations or the fridge not cycling on and off properly, it might be time to consider replacing the circuit board.

In this guide from TheKitchenApplianceDad.com, I’ll walk you through the process of identifying when a replacement is necessary, purchasing the right circuit board, and successfully installing it.

Identifying the Need for Replacement

Symptoms of a failing circuit board may include:

  • The refrigerator fails to maintain a consistent temperature.
  • The display panels or interior lights are not working.
  • The fridge makes unusual noises, or the compressor doesn’t turn off.

Before you decide to replace the circuit board, ensure that the problem isn’t due to simpler issues like a loose wire or a malfunctioning sensor. Consulting the refrigerator’s manual for troubleshooting tips or contacting Frigidaire support can provide guidance and confirm whether the circuit board is the culprit.

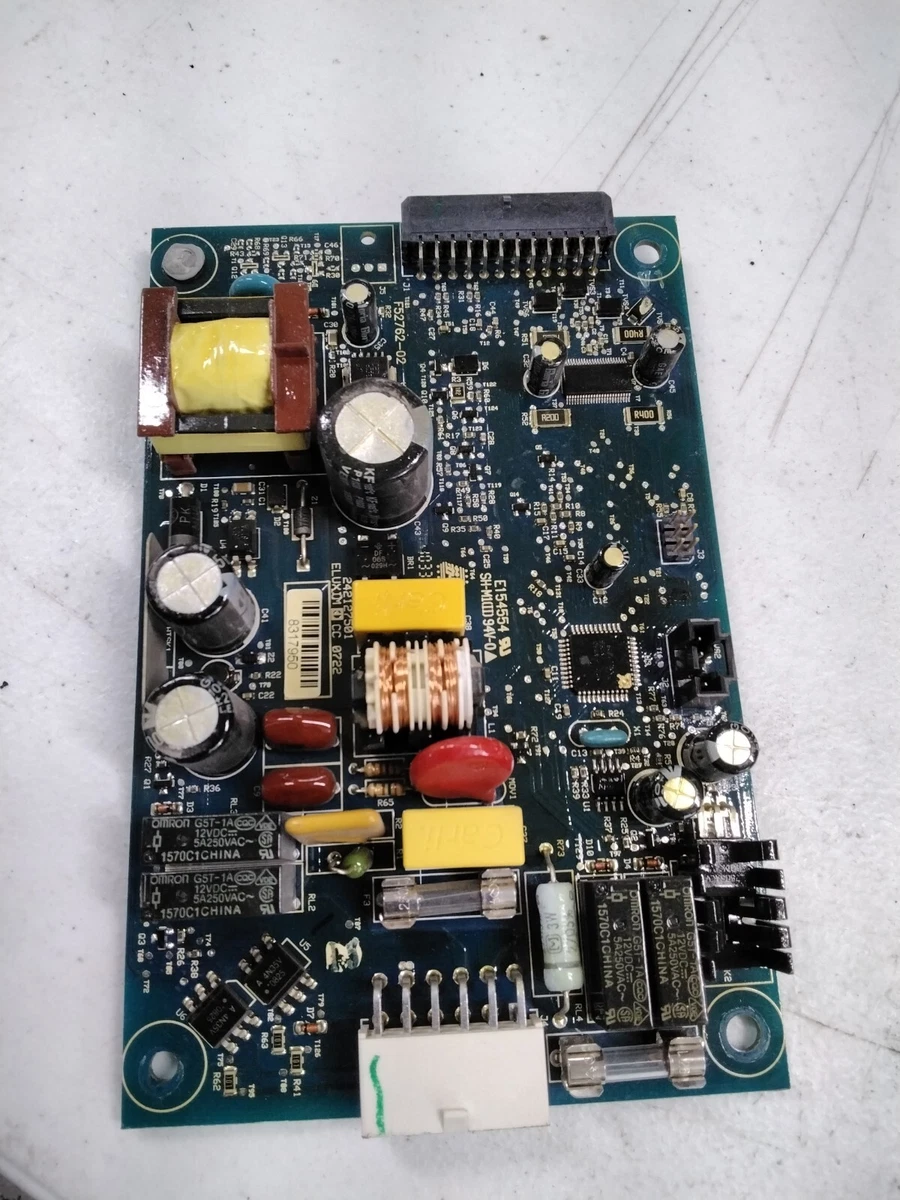

Frigidaire Refrigerator Control Board Part# 242127501 | eBay

Purchasing the Correct Circuit Board

Finding the Right Model

It’s crucial to purchase the correct circuit board model for your specific Frigidaire refrigerator. Look for the model number on the inside of the refrigerator, usually on a label found near the top shelf or on the wall behind the crisper drawers. Once you have this number, you can:

  • Visit the official Frigidaire parts website (Frigidaire Parts).
  • Search for authorized dealers or third-party vendors like Amazon or RepairClinic that stock genuine Frigidaire parts.

Ensure that the circuit board you purchase matches your fridge’s model number to avoid compatibility issues.

Tools Needed for the Replacement

Before you start the replacement process, gather the necessary tools:

  • Screwdriver: Typically, a Phillips head.
  • Digital Camera or Smartphone: Useful for taking pictures of the wiring before disconnecting.
  • Pliers: Might be needed to remove any tight connectors.
  • Anti-Static Wrist Strap: Recommended to prevent damaging the new circuit board with static electricity.

Step-by-Step Replacement Process

Step 1: Unplug Your Refrigerator

Safety first. Ensure the refrigerator is unplugged from the power source to avoid any electrical hazards.

Step 2: Access the Circuit Board

Most Frigidaire models with a bottom freezer have the circuit board located behind a panel on the back of the refrigerator. Remove this panel by unscrewing it.

Step 3: Take Photos for Reference

Before disconnecting any wires, use your digital camera or smartphone to take clear pictures of the connections. This step is crucial for ensuring you can reconnect everything correctly.

Step 4: Remove the Old Circuit Board

Carefully disconnect the wires and connectors from the circuit board, using pliers if necessary. Remove any screws holding the board in place and gently take the board out.

Step 5: Install the New Circuit Board

Place the new circuit board in the same position as the old one. Refer to the photos you took earlier to reconnect all the wires and connectors correctly. Screw the new board into place, ensuring it is secure.

Step 6: Reattach the Back Panel

Once the new board is installed and everything is reconnected, replace the back panel and screw it back into place.

Step 7: Plug in and Test Your Refrigerator

Plug the refrigerator back into the power source. Check the functionality of the display and monitor the fridge for a few hours to ensure it’s operating correctly and maintaining the right temperature.

Closing Up

Swapping out the circuit board in a Frigidaire refrigerator with a bottom freezer is a task that can be accomplished with some careful preparation and attention to detail. While it might seem daunting, this guide should help you confidently perform the replacement, ensuring your refrigerator continues to function efficiently.

Key Takeaways

  • Identify the Problem: Ensure that the circuit board is the issue before replacement.
  • Purchase the Correct Part: Use the model number to buy the appropriate circuit board.
  • Document the Process: Taking photos before disconnecting wires is crucial for correct reassembly.
  • Safety First: Always unplug the refrigerator before starting the work.
  • Test After Installation: Check all functions post-installation to ensure everything is working as it should.

By following these steps, you can ensure that your Frigidaire refrigerator remains a reliable appliance in your kitchen. For more appliance maintenance tips and guides, keep visiting TheKitchenApplianceDad.com.
