Replacing the Evaporator Coil in a Frigidaire Refrigerator

When it comes to maintaining your Frigidaire refrigerator, one critical component that might occasionally need replacing is the evaporator coil. This essential part of your fridge is responsible for absorbing heat from inside the unit, thereby cooling the air that keeps your food fresh. Over time, the evaporator coil can suffer from issues such as corrosion or frost buildup, leading to a decrease in efficiency or a complete breakdown. In this comprehensive guide from TheKitchenApplianceDad.com, we’ll walk you through the steps of replacing the evaporator coil in a Frigidaire refrigerator.

Understanding the Importance of the Evaporator Coil

Before diving into the replacement process, it’s crucial to understand the role of the evaporator coil in your refrigerator. Located in the freezer compartment, this coil is filled with refrigerant that absorbs heat as it changes from a liquid to a gas. A fan blows air over the coil, cooling it in the process and then circulating cold air throughout the refrigerator and freezer.

Signs That You Need to Replace Your Evaporator Coil

1. Unusual Increase in Freezer Temperature:
If your freezer isn’t as cold as it used to be, the evaporator coil might be failing.

2. Visible Frost Build-up:
Excessive frost or ice on the evaporator coil is a sign of trouble, often indicating a problem with the defrost system or the coil itself.

3. Strange Noises:
Banging or humming sounds coming from the freezer compartment can be linked to evaporator coil issues.

Tools and Materials Needed

• Screwdrivers (Phillips and flat-head)
• Nut driver or socket set
• New evaporator coil (specific to your Frigidaire model)
• Refrigerant (consult your refrigerator’s manual for type)
• Refrigeration gauges
• Vacuum pump
• Soldering kit
• Gloves and safety goggles

Step-by-Step Guide to Replacing the Evaporator Coil

Step 1: Unplug and Prepare Your Refrigerator

Safety first! Ensure that your refrigerator is unplugged and that you have a clear workspace. Remove any food items and shelving from the freezer compartment.

Step 2: Access the Evaporator Coil

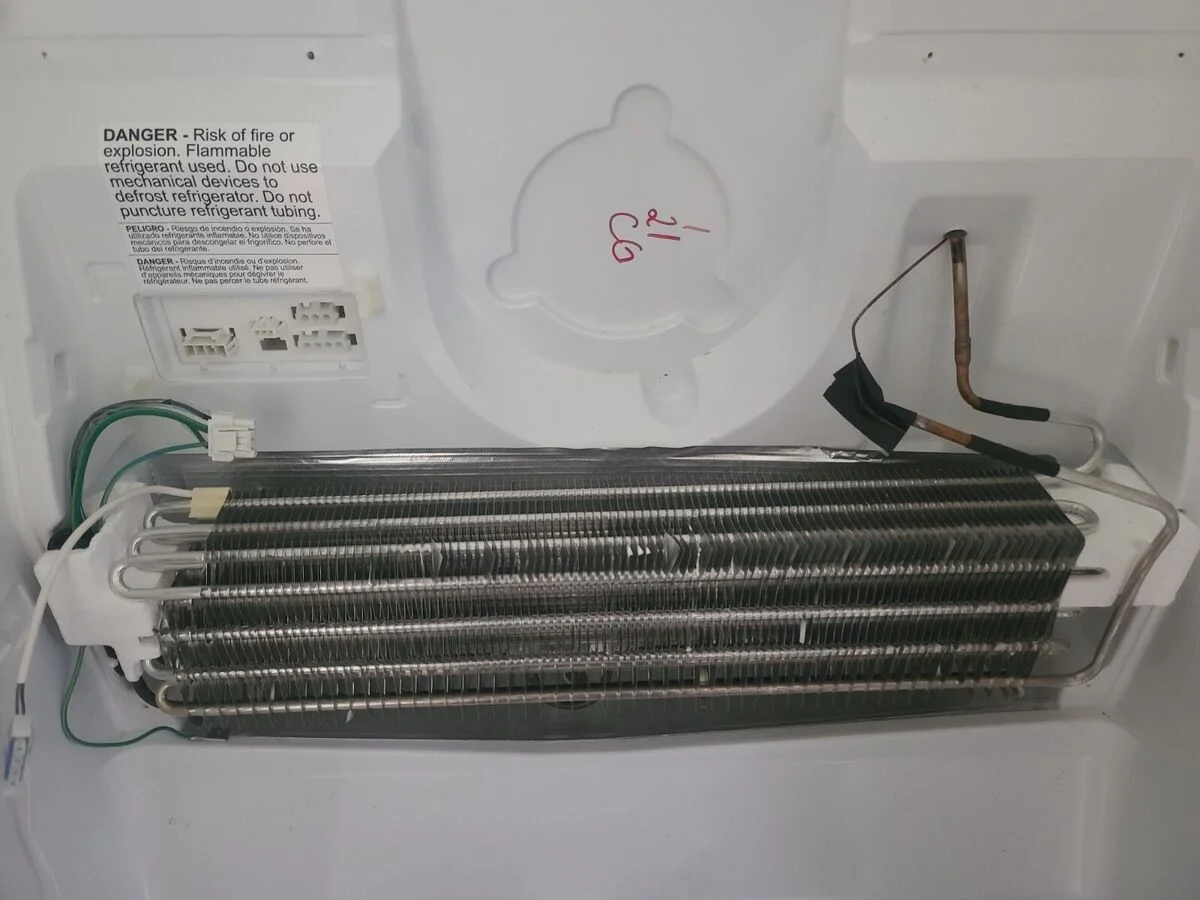

Remove the panel inside the freezer that covers the evaporator coil. This usually involves removing several screws. Be careful with the panel as it might have sharp edges.

Step 3: Assess the Situation

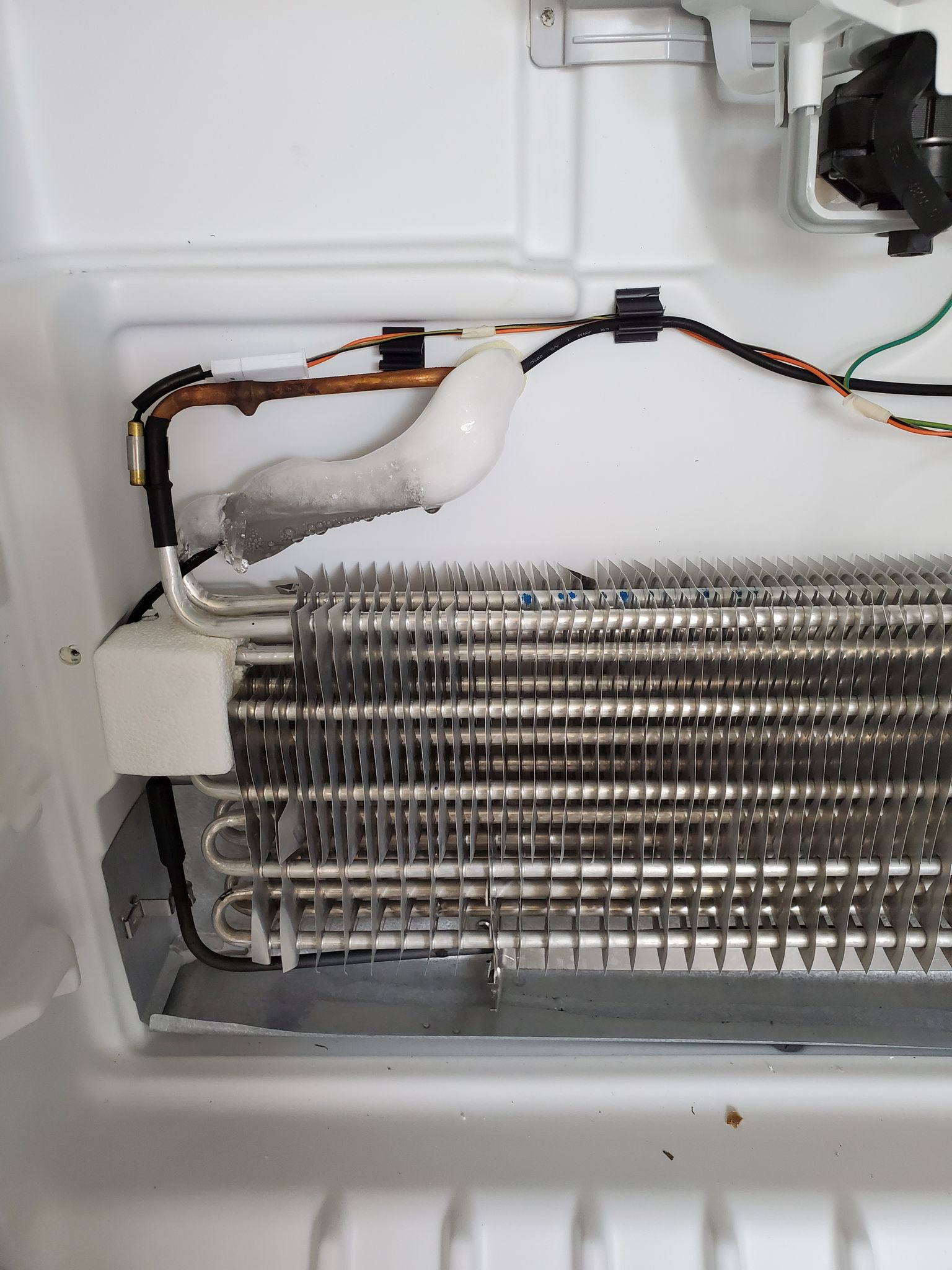

Once you have access, inspect the evaporator coil. Look for signs of damage or extensive frost build-up. If you’re replacing the coil due to a refrigerant leak, it’s essential to find the leak’s source before proceeding.

Step 4: Remove the Old Evaporator Coil

Disconnect the refrigerant lines connected to the coil. This will likely require cutting the lines, so ensure you have the proper tools. Note: Handling refrigerant should be done with extreme caution and preferably by a certified professional due to the hazardous nature of the substance.

Step 5: Install the New Evaporator Coil

Position the new coil in place and secure it. You will need to solder the refrigerant lines to the new coil, ensuring all connections are tight and leak-free.

Step 6: Vacuum and Recharge the Refrigerant System

Using a vacuum pump, remove all air and moisture from the refrigerant system. This process is crucial to ensure the efficiency of your refrigerator. Once the system is vacuumed, recharge it with the specific type of refrigerant recommended for your model.

Step 7: Reassemble and Test

Replace the panel and restore any shelves or bins. Plug the refrigerator back in and monitor the freezer’s temperature over the next few hours to ensure everything is working correctly.

Key Considerations

• Model Specific Parts: Always use evaporator coils and refrigerants that are specific to your refrigerator model. Incompatible parts can lead to inefficiency and damage.
• Professional Help: Due to the complexity and potential hazards involved in handling refrigerants, consider hiring a professional if you are not confident in your ability to safely complete the task.
• Preventive Maintenance: Regularly check and maintain your refrigerator to extend the life of all components, including the evaporator coil.

Key Takeaways

• Role of Evaporator Coil: The evaporator coil is crucial for cooling your refrigerator’s interior.
• Signs of Failure: Be on the lookout for increased temperatures, frost buildup, and unusual noises.
• Safety First: Always unplug your refrigerator before attempting repairs and consider professional help for handling refrigerants.
• Right Tools and Parts: Use the correct tools and model-specific parts for a successful replacement.

Replacing an evaporator coil in your Frigidaire refrigerator can be a detailed and challenging process, but with the right tools and knowledge, it can also be arewarding DIY project. At TheKitchenApplianceDad.com, we’re dedicated to helping you keep your kitchen running smoothly. Whether you decide to tackle this project yourself or hire a professional, understanding the process can help you make informed decisions about maintaining your refrigerator’s health and efficiency.

For more tips on refrigerator maintenance and other appliance advice, stay tuned to TheKitchenApplianceDad.com. Happy fixing!
